2 horse Float Angle load

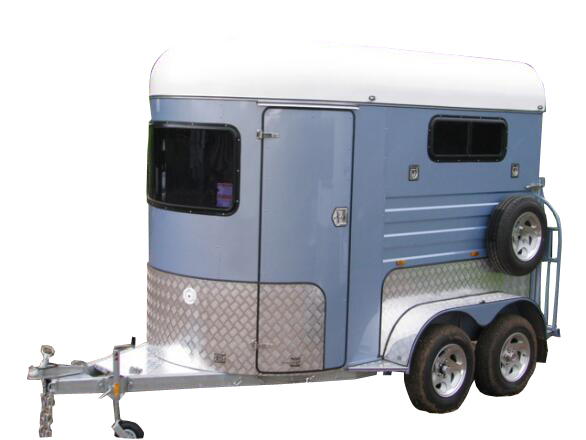

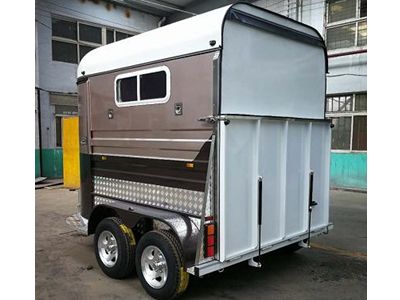

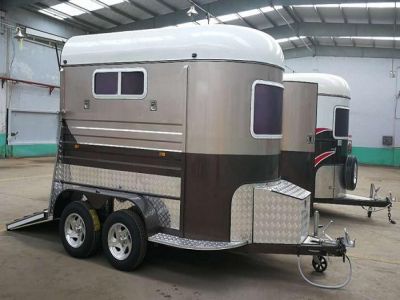

2 Horse Float Angle Load

Tel:+86-13953213158

E-mail:Paule@haylite.com

2 Horse Float Angle Load Standard



Overall information

Overall size  4110x2290x2580mm
Internal size  3185x1930x2155mm
Chassis size  3260(+850) x 2280
Chassis  surface finish  Hot Dip Galvanized surface finish
Net weight  1400KG
Max. Loading  2400KG
Surface finish  Powder coated
Color  Can be customized color
Windows and doors
Side window  900x300mm 4 pieces
Front Window  1220x610mm 1 peices
Side door  1675x670mm
Rear upper door  Pump  strut
Rear Lower door  Used as ramp, 15mm plywood + 10mm rubber mat, pump strut

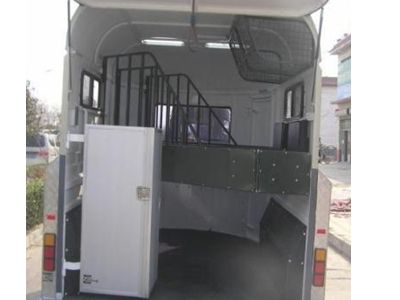

Inside
Floor  18mm plywood + 8mm rubber mat
Horse protection frame  68mm thick pillow
Inside horse rings  Stainless steel material
Hayrack  Mesh hayrack on top
Horse Saddle box  Swing horse saddle box, aluminium material
Spare parts
Mudguard  1650x250mm
Taillight bracket  1.5mm aluminium checkered plate
Rim  14 inch alloy
Tyre  185R14
Axle  45x45mm sqaure axle
Brake  Electrical brake
Spring  6 leaves spring
Out side horse rings  Stainless steel



2 Horse Float Angle Load Extended



Overall information

Overall size  4970x2280x2590mm
Internal size  4045x1930x2155mm
Chassis size  4120(+850) x 2280
Chassis  surface finish  Hot Dip Galvanized surface finish
Net weight  1680KG
Max. Loading  2400KG
Surface finish  Powder coated
Color  Can be customized color
Windows and doors
Side window  600x300mm 4 pieces
Front Window  1220x610mm 1 peices
Side door  1675x615mm
Rear upper door  Pump  strut
Rear Lower door  Used as ramp, 15mm plywood + 10mm rubber mat, pump strut
Inside
Floor  18mm plywood + 8mm rubber mat
Horse protection frame  68mm thick pillow
Inside horse rings  Stainless steel material
Hayrack  Mesh hayrack on top
Horse Saddle box  Swing horse saddle box, aluminium material
Spare parts
Mudguard  1650x250mm
Taillight bracket  1.5mm aluminium checkered plate
Rim  14 inch alloy
Tyre  185R14
Axle  50x50mm sqaure axle
Brake  Electrical brake
Spring  7 leaves spring
Out side horse rings  Stainless steel

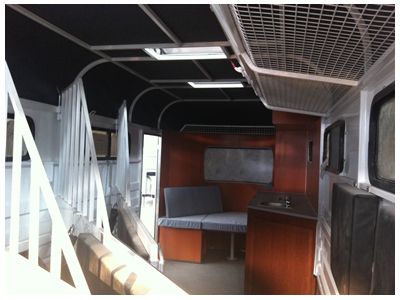

Front                                                                            Cabinet/Sofa/Bed/or others as requirement



Customized color and design are acceptable



Haylite factory was founded in 1993. We manufacture different kinds of horse float and trailers.

Available model of horse floats:

2 horse straight  load Standard

2 horse straight load extended

2 horse angle load standard

2 horse angle load extended

3 horse angle load standard

3 horse angle load extended

4 horse angle load

7 horse angle load

Gooseneck trailer with living area

Customized design are also acceptable



Customized color and design are acceptable
